How We Built a Spotify Game App in 4 Hours on the Web Dev Challenge

@Component({
  selector: 'spot-game-setup',
  imports: [RenderMessageComponent, LoaderComponent],
  template: `
    @let message = ui.lastAssistantMessage();

    @if (ui.isLoading()) {
      <spot-loader />
    }

    <!-- Render generated UI -->
    @if (message) {
      <hb-render-message [message]="message" />
    }
  `,
  styles: `
    :host {
      display: flex;
      flex-direction: column;
      align-items: stretch;
      height: 100%;

      > hb-render-message {
        flex: 1 auto;
      }
    }
  `,
  providers: [{ provide: ChatService, useExisting: GameSetupComponent }],
})
export class GameSetupComponent implements ChatService {
  // 1. Inject the MCP service
  mcp = inject(McpServerService);

  // 2. Create the UI chat resource to connect to OpenAI
  ui = uiChatResource({
    model: 'gpt-4.1',

    // 3. The debug name enables the use of the Redux devtools
    debugName: 'Game Setup',

    // 4. Set the tone and provide the instruction to the model
    system: `
      You are a helpful assistant that helps users set up a Spotify playlist
      music game. Your goal is to collect enough information from the user to
      start the game loop.

      To start a game, we need the following information:
       1. Is the user authenticated with Spotify?
       2. What Spotify device is the game going to be played on?
       3. What are the rules of the game?
       4. Who are the players playing the game?

       # Auth
       Call the is_authenticated tool to check if the user is authenticated with Spotify.
       If the user is not authenticated, show the login view.

       # Device
       Call the list_devices tool to get a list of devices. If there's exactly one device,
       skip the device view and go to the next step. Otherwise, show the connect to device view.

       # Rules
       After the user has connected to a device, ask the user for the rules of the game. Show
       them the games-rules view.

       # Players
       After the user has connected to a device and has described the rules of the game,
       ask the user for the players playing the game. Show them the players view.

       # Game Loop
       After the user has connected to a device, has described the rules of the game, and has added the players,
    `,

    // 5. The initial message is hard coded here to kick things off
    messages: [{ role: 'user', content: 'help me setup the game' }],

    // 6. Expose Angular components to the model
    components: [

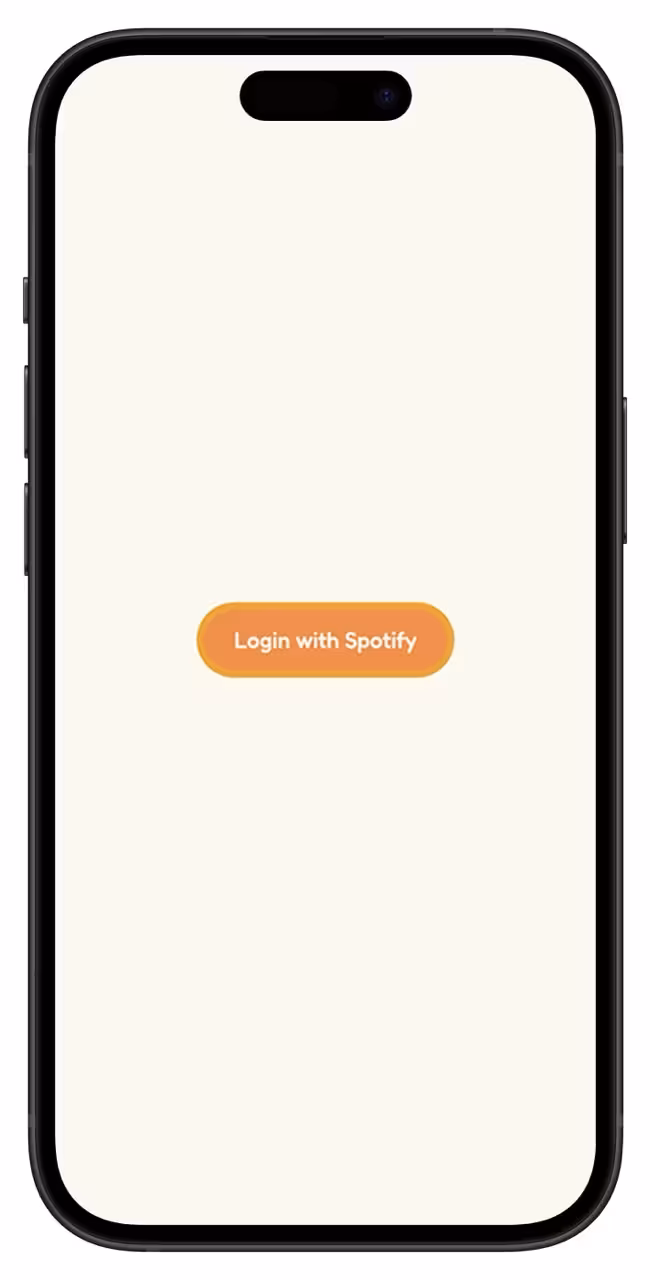

      exposeComponent(LoginViewComponent, {
        description: 'Shows a login button to the user',
      }),
      exposeComponent(PlayersViewComponent, {
        description: 'Lets the players add or remove players',
      }),

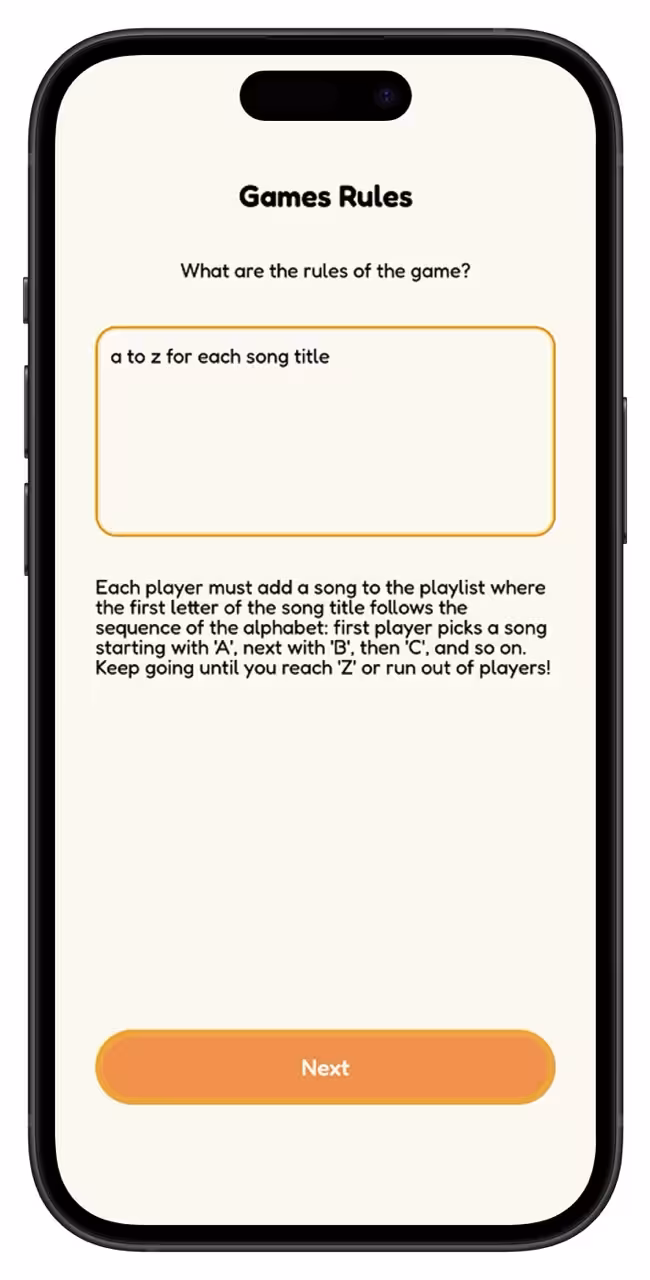

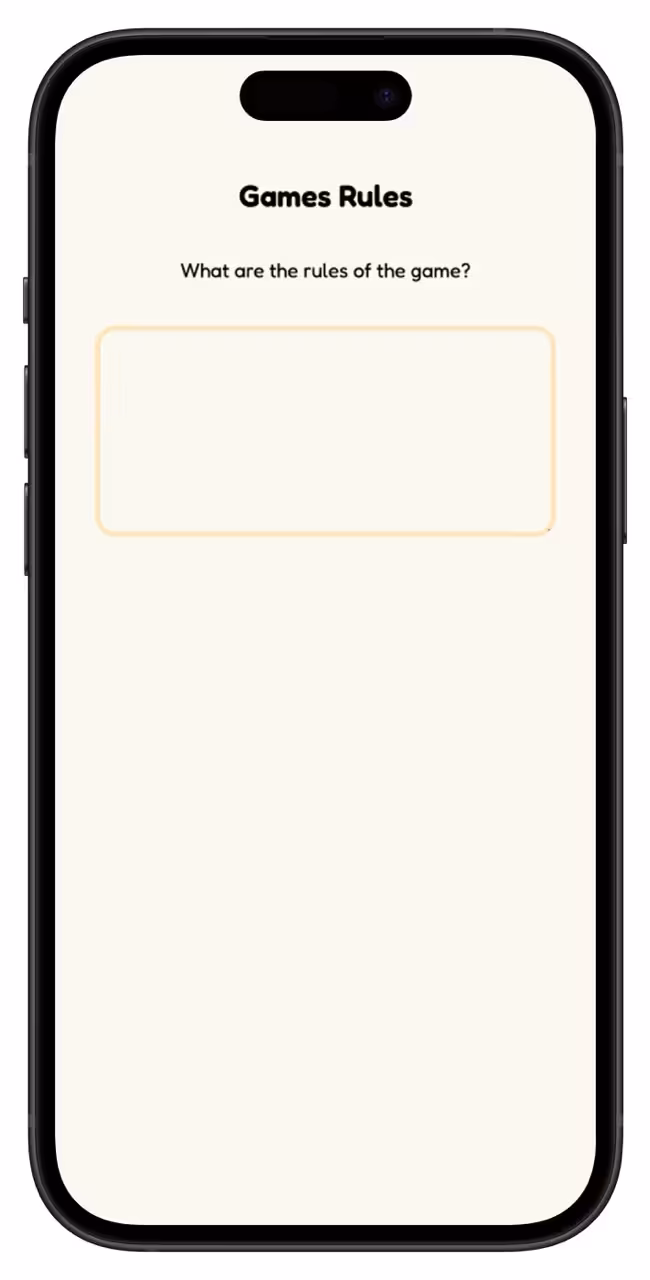

      exposeComponent(GamesRulesViewComponent, {
        description: 'Lets the players describe the rules of the music game',
      }),
      exposeComponent(ConnectToDeviceViewComponent, {
        description:
          'Lets the players connect to a device if one is not available',
        input: {
          devices: s.array(
            'The list of devices the user can connect to',
            s.object('Device', {
              deviceId: s.string('The device ID'),
              name: s.string('The device name'),
              materialSymbolIcon: s.string(
                'The material symbol icon that best represents the device',
              ),
            }),
          ),
        },
      }),
      exposeComponent(GameLoopComponent, {
        description: 'Once everything is configured, this starts the game loop',
        input: {
          gameDescription: s.object('The description of the game', {
            players: s.array(
              'The players playing the game',
              s.string('The player name'),
            ),
            rules: s.string(`
              The public rules of the game.
            `),
            hiddenRules: s.string(`
              The hidden rules of the game.
            `),
            spotifyDeviceId: s.string('The Spotify device ID'),
          }),
        },
      }),
    ],

    // 7. Wire up the remote MCP tools alongside a tool to check if the user is authenticated
    tools: [
      ...this.mcp.tools(),
      createTool({
        name: 'is_authenticated',
        description: 'Check if the user is authenticated with Spotify',
        handler: async () => {
          const spotify = inject(SpotifyService);

          return { authenticated: spotify.isAuthenticated() };
        },
      }),
    ],
  });

  sendMessage(message: string): void {
    this.ui.sendMessage({ role: 'user', content: message });
  }
}

@Component({
  selector: 'spot-game-loop',
  imports: [RenderMessageComponent],
  template: `
    @let message = gameMaster.lastAssistantMessage();

    <!-- Render generated UI -->
    @if (message) {
      <hb-render-message [message]="message" />
    }
  `,
  providers: [
    {
      provide: ChatService,
      useExisting: GameLoopComponent,
    },
  ],
})
export class GameLoopComponent implements ChatService {
  // 1. Inject the MCP Service
  mcp = inject(McpServerService);

  // 2. The expected input from the game setup agent
  gameDescription = input.required<{
    players: string[];
    rules: string;
    hiddenRules: string;
    spotifyDeviceId: string;
  }>();

  // 3. Create the game master agent
  gameMaster = uiChatResource({
    model: 'gpt-4.1',

    // 4. The debug name enables the use of the Redux devtools
    debugName: 'Game Master',

    // 5. Set the tone and provide the instruction to the model
    system: `
      You are the game master for a user-defined Spotify playlist game.
      The user has already defined the game rules, spotify device to use,
      and the list of players. Your responsibility is to show the right
      game screen and manage the game flow.

      When a song is selected, queue it on the spotify device then advance
      the turn order.

      NEVER show more than one <spot-player-turn> component at a time.

      Be a playful game designer. You have public rules that you can share
      with the players, and hidden rules that you playfully hide from the
      user (though it is not important that you keep them hidden if asked).

      Pick unique colors for each player to use in the UI. Base the colors
      on the following color palette:
       - sunshine-yellow: #fbbb52;
       - sky-blue: #64afb5;
       - sunset-orange: #e88c4d;
       - olive-green: #616f36;
       - indian-red: #b86060;
       - chocolate-brown: #774625;
    `,

    // 6. Expose Angular components to the model
    components: [

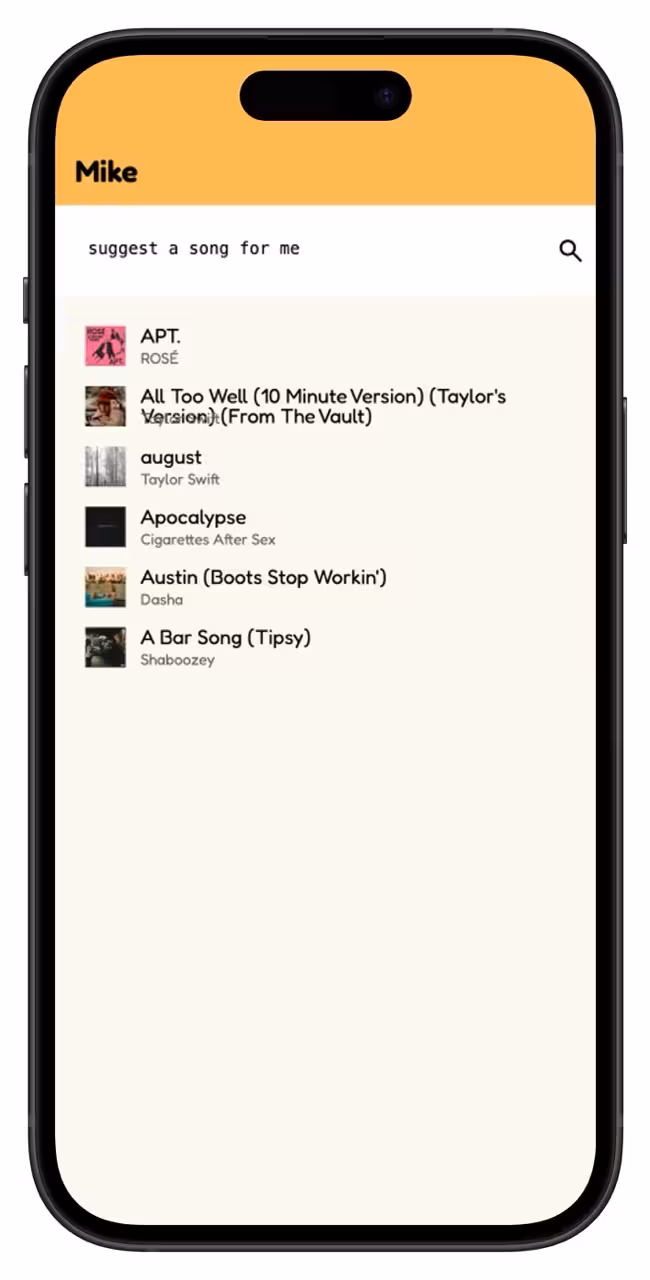

      exposeComponent(SongPickerViewComponent, {
        description: `
          A view that where an AI agent collaborates with aa player
          to pick a song from the play list. This must always be a
          child of the <spot-player-turn> component.
        `,
        input: {
          constraint: s.string(`
            Your instructions to the AI agent on how to pick a song
            with the player.
          `),
          currentPlayer: s.string(
            'The name of the player that is currently in their turn.',
          ),
        },
      }),

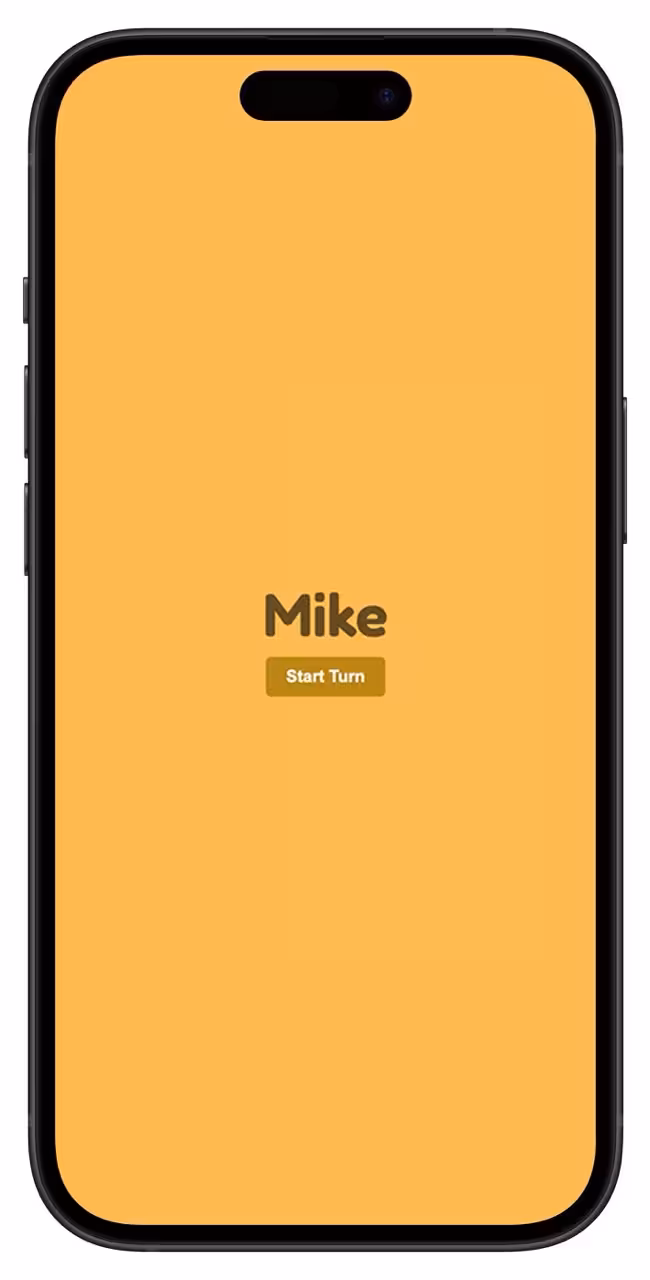

      exposeComponent(PlayerTurnComponent, {
        children: 'any',
        description: `
          Show a player's turn. Only show one player turn at a time, for the
          player that is currently in their turn.
        `,
        input: {
          player: s.string(
            'The name of the player that is starting their turn.',
          ),
          color: s.string(
            'The color of the player that is starting their turn.',
          ),
          darkenedColor: s.string(
            'The darkened color of the player that is starting their turn.',
          ),
        },
      }),
    ],

    // 7. Expose remote MCP tools to the model
    tools: [...this.mcp.tools().filter((tool) => tool.name === 'queue_track')],
  });

  constructor() {
    // 8. Send the game description to the model
    effect(() => {
      this.gameMaster.sendMessage({
        role: 'user',
        content: `game_rules:\n${JSON.stringify(this.gameDescription())}`,
      });
    });
  }

  sendMessage(message: string) {
    this.gameMaster.sendMessage({
      role: 'user',
      content: message,
    });
  }
}

import { Client } from '@modelcontextprotocol/sdk/client/index.js';
import { StreamableHTTPClientTransport } from '@modelcontextprotocol/sdk/client/streamableHttp.js';
import { SpotifyService } from './spotify';
import { Chat } from '@hashbrownai/core';
import { createTool } from '@hashbrownai/angular';

@Injectable({
  providedIn: 'root',
})
export class McpServerService {
  // 1. Define the MCP client
  client?: Client;

  // 2. We created a simple service that uses the Spotify JS SDK
  spotify = inject(SpotifyService);

  // 3. Track the connected state
  connected = signal(false);

  // 4. Define a signal that will contain all of the remote MCP tools
  tools = signal<Chat.AnyTool[]>([]);

  injector = inject(Injector);

  async connect() {
    this.client = new Client({
      name: 'spotify',
      version: '1.0.0',
      title: 'Spotify',
    });

    // 5. Connect to the remote MCP server passing along the spotify access token
    await this.client.connect(
      new StreamableHTTPClientTransport(new URL('http://localhost:5150/mcp'), {
        requestInit: {
          headers: {
            Authorization: `Bearer ${encodeURIComponent(
              JSON.stringify(this.spotify.accessToken()),
            )}`,
          },
        },
      }),
    );

    // 6. Map the remote MCP tools to hashbrown's `AnyTool` interface
    const { tools: mcpTools } = await this.client.listTools();
    const tools = mcpTools.map((tool) => {
      return runInInjectionContext(this.injector, () => {
        return createTool({
          name: tool.name,
          description: tool.description ?? '',
          schema: {
            ...tool.inputSchema,
            additionalProperties: false,
            required: Object.keys(tool.inputSchema.properties ?? []),
          },
          handler: async (input) => {
            const result = await this.client?.callTool({
              name: tool.name,
              arguments: input,
            });
            return result;
          },
        });
      });
    });

    this.tools.set(tools);

    this.connected.set(true);
  }
}

@Component({
  selector: 'spot-song-picker-view',
  template: ` <!-- code omitted for brevity --> `,
})
export class SongPickerViewComponent {
  mcp = inject(McpServerService);
  query = signal('');
  textarea = viewChild.required<CdkTextareaAutosize>('autosize');
  constraint = input.required<string>();
  currentPlayer = input.required<string>();

  // 1. Create a new runtime instance that returns a `RuntimeRef`
  runtime = createRuntime({
    timeout: 20_000,

    // 2. Expose the `getCompletion` and `getLyrics` functions to the sandbox env
    functions: [
      createRuntimeFunction({
        name: 'getCompletion',
        description: `
          Synchronously uses gpt-4.1-mini to get a completion for the given prompt
          and input data.
        `,
        args: s.object('The args for the function', {
          system: s.string('The system prompt to use'),
          input: s.string('The input data to use'),
        }),
        result: s.string('The completion'),
        handler: ({ system, input }, abortSignal) => {
          const hashbrown = fryHashbrown({
            apiUrl: 'http://localhost:5150/chat',
            model: 'gpt-4.1-mini',
            debugName: 'inception completion',
            system,
            messages: [{ role: 'user', content: input }],
          });

          const teardown = hashbrown.sizzle();

          return new Promise<string>((resolve, reject) => {
            const unsubscribe = hashbrown.messages.subscribe((messages) => {
              const assistantMessage = messages.find(
                (m) => m.role === 'assistant',
              );
              if (assistantMessage && assistantMessage.content) {
                resolve(assistantMessage.content);
              }
              const errorMessage = messages.find((m) => m.role === 'error');
              if (errorMessage) {
                reject(errorMessage.content);
                teardown();
              }
            });

            abortSignal?.addEventListener('abort', () => {
              unsubscribe();
              teardown();
            });
          });
        },
      }),
      createRuntimeFunction({
        name: 'getLyrics',
        description: 'Get the lyrics of a song using Genius',
        args: s.object('The args for the function', {
          title: s.string('The title of the song'),
          artist: s.string('The artist of the song'),
        }),
        result: s.string('The lyrics of the song'),
        handler: async ({ title, artist }, abortSignal) => {
          const req = await fetch(
            `http://localhost:5150/lyrics?searchTerm=${`${title} by ${artist}`}`,
            {
              signal: abortSignal,
            },
          );
          const lyrics = await req.text();
          console.log(lyrics);
          return lyrics;
        },
      }),
    ],
  });

  // 3. Create the song picker agent
  songPickerUi = uiChatResource({
    model: 'gpt-4.1',

    // 4. The debug name enables the use of the Redux devtools
    debugName: 'Song Picker',

    // 5. Set the tone and provide the instruction to the model
    system: `

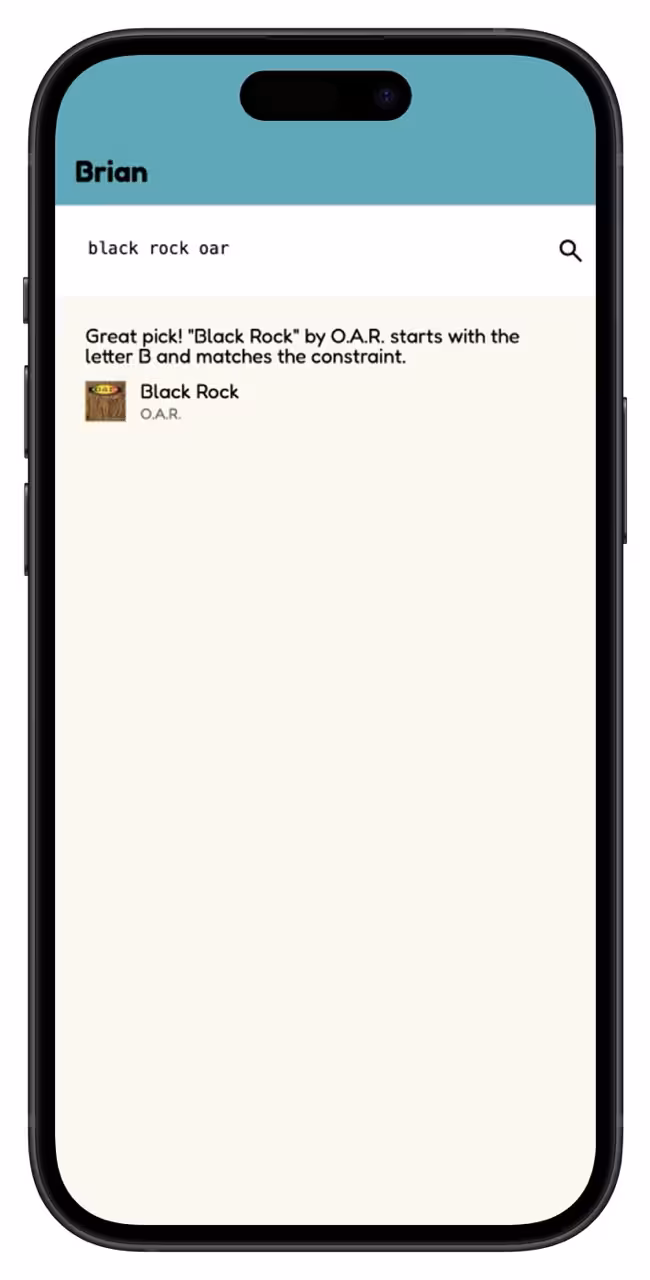

      You are a song picker for a Spotify playlist game.
      You are given a constraint and you need to help the user
      pick a song that matches the constraint. It is your job to
      validate the song and make sure it matches the constraint.
      If the song does not match the constraint, you should ask the
      user to pick a different song.

      Each message will contain the user's query, and the active
      constraint. You should use tools to query songs from Spotify.

      You must show the <spot-song> component to the user if there
      are valid songs to pick from, otherwise the user cannot
      select a song.

      Sometimes the user will ask who is playing or whose turn it is.
      If the user asks this, still search for songs, but also answer
      the question.

      Tool JavaScript is available to you. You can use it to ground
      your answers. Additionally, some games may require that you
      leverage AI to determine if a song selection is valid. For
      example, if the game is to select songs that mention food, you
      can use the "getLyrics" function in the VM to get the lyrics of
      the song and then use the "getCompletion" function to determine
      if the song mentions food.

      Important: Verify the song exists in Spotify before using the
      "getLyrics" function.

      Example Script (must be valid JavaScript):

      <script>
        const lyrics = getLyrics({ title: 'Song Title', artist: 'Artist Name' });
        const completion = getCompletion({
          system: \`
            You are a helpful assistant that can determine if a song mentions food.
            Respond exactly with "true" or "false" if the song mentions food.
          \`,
          input: lyrics,
        });
        return completion;
      </script>
    `,

    // 6. Expose Angular components to the model
    components: [
      exposeComponent(MarkdownComponent, {
        description: `
          Shows markdown to the user.
        `,
        input: {
          data: s.streaming.string('The markdown data to render.') as any,
        },
      }),
      exposeComponent(SongComponent, {
        description: `
        A song that can be picked from the playlist.
        `,
        input: {
          name: s.string('The name of the song.'),
          artist: s.string('The artist of the song.'),
          uri: s.string('The URI of the song.'),
        },
      }),
    ],

    // 7. Concat the remote MCP tools with tool JavaScript, providing the `RuntimeRef`
    tools: [
      ...this.mcp.tools().filter((tool) => tool.name === 'search'),
      createToolJavaScript({
        runtime: this.runtime,
      }),
    ],
  });

  // code omitted for brevity
}
